Mounting structure on the Wall

Created on June 06, 2025

2025   ·   hardware   project

  • After two days of work, the mounting structure is now mounted on the wall. It is now ready to receive the first LED modules.
  • The networking was also installed: the fiber optic cable is connected to the switch and is active.
  • Cable trays are installed to route the power and data cables around the room.
  • TV stands are assembled and ready to be placed in the room.
  • 100” TVs are unpacked and tested. They are now ready to be mounted on the wall.

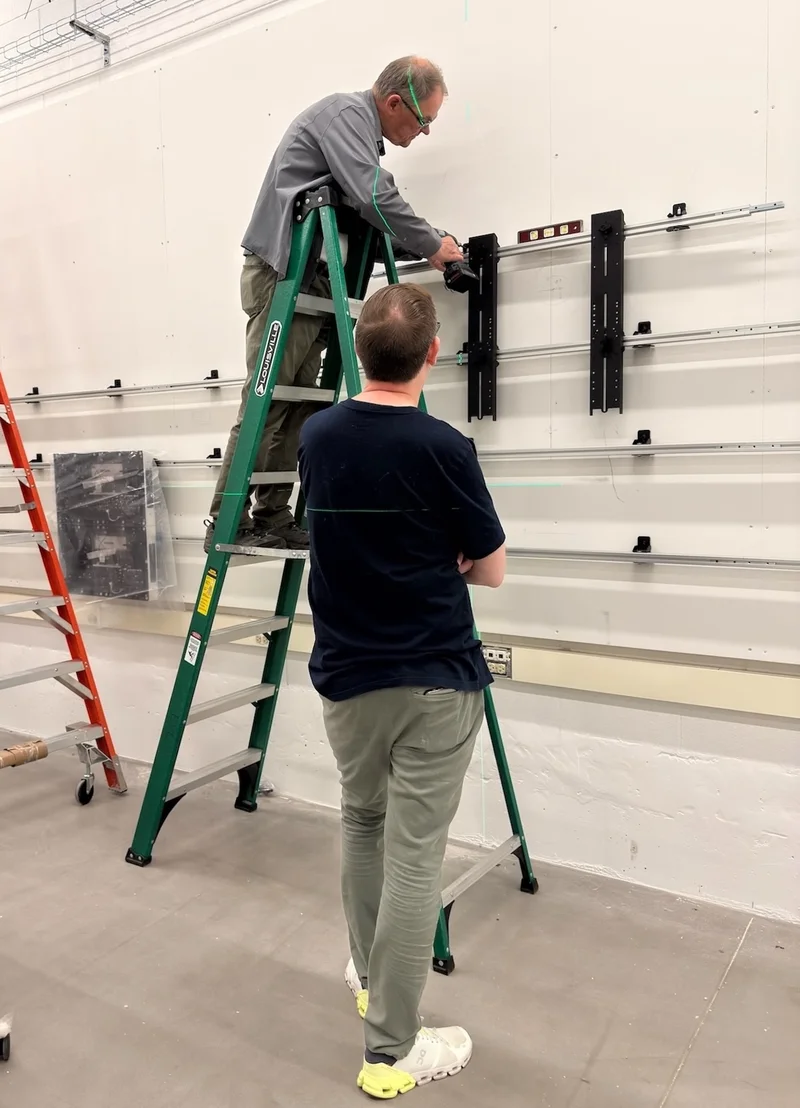

Seting up the first few rows of the mounting structure is crucial. The structure must be level and aligned with the wall.

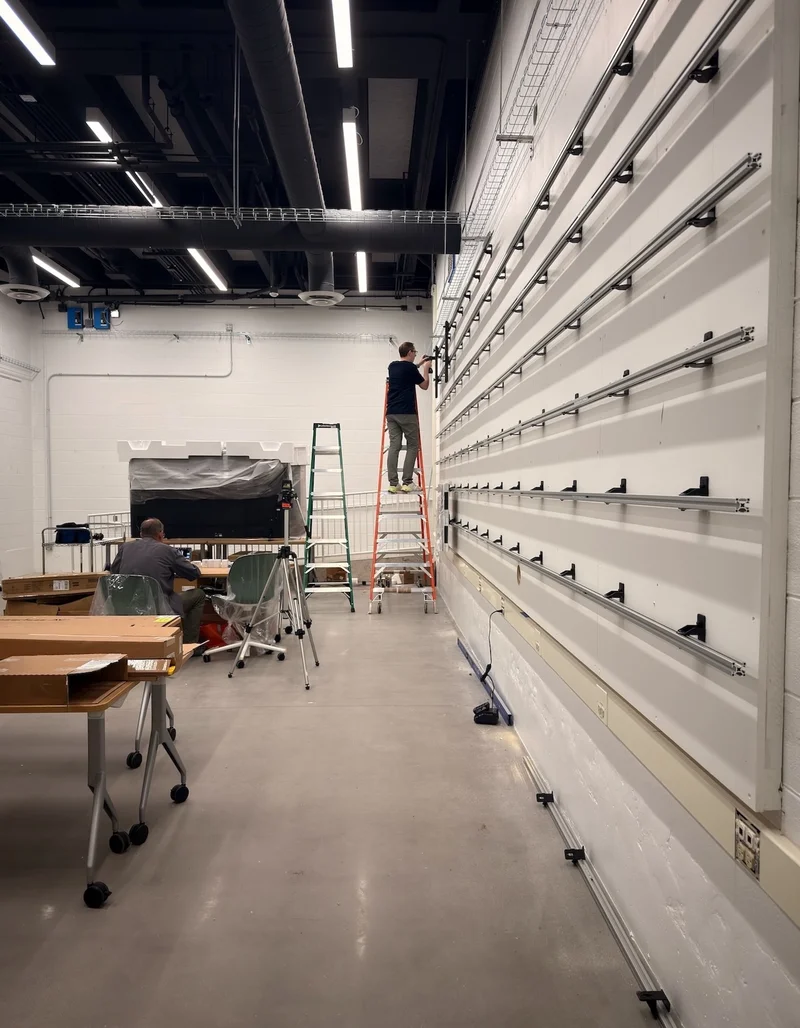

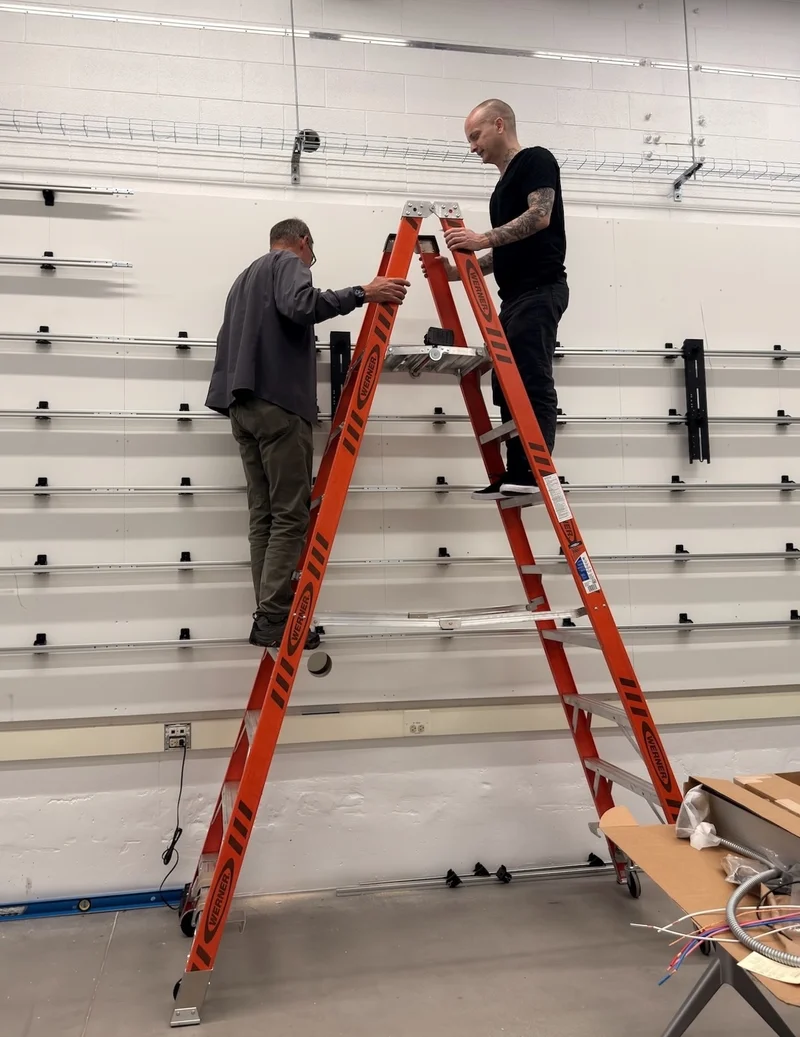

More rows are added to the structure.

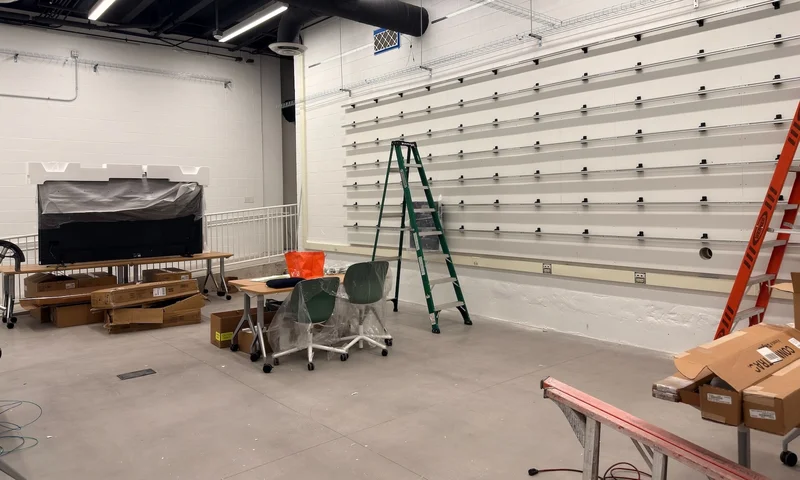

Mounting structure is complete.

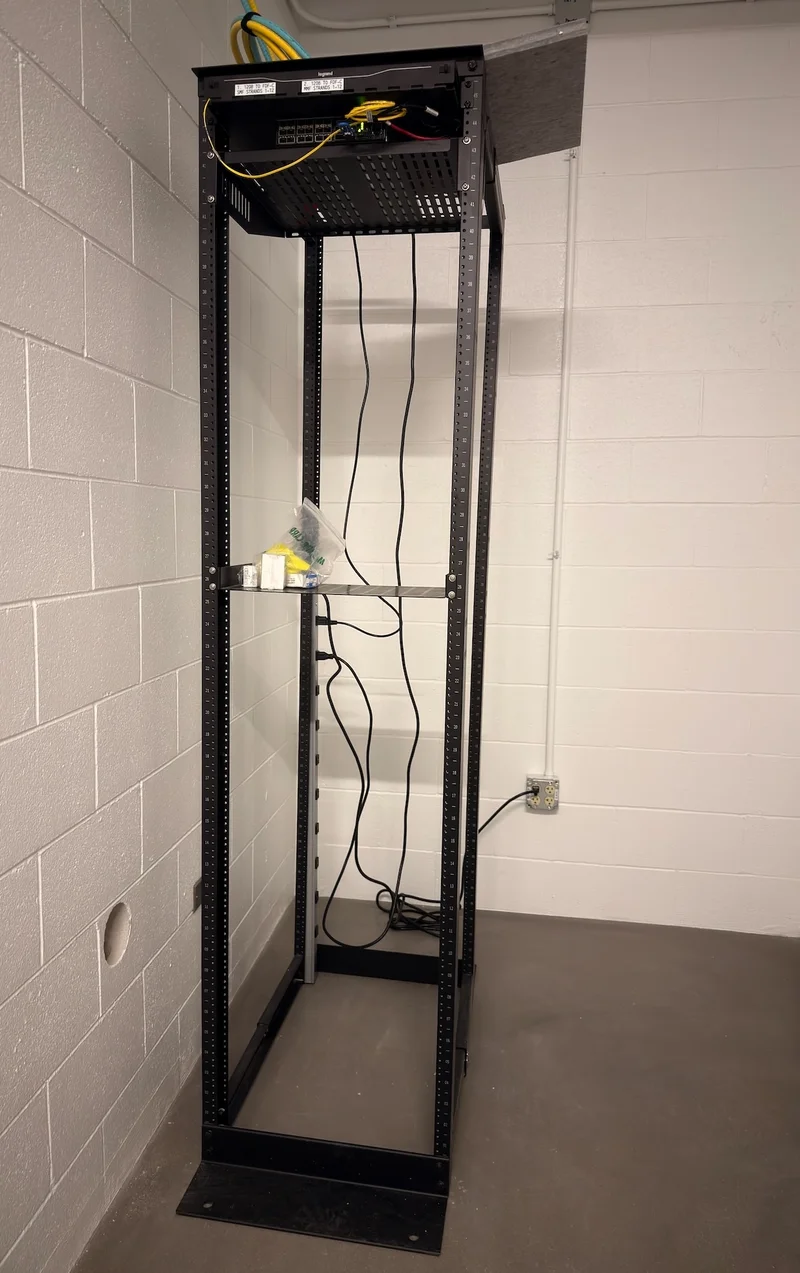

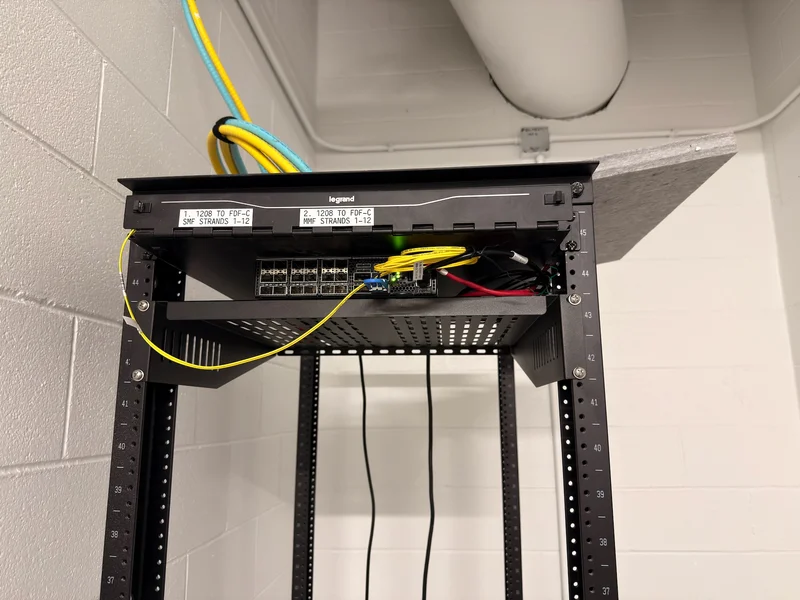

Network is up. 100G fiber optic cable is connected to the switch and connected to EVL's network.
